LED selection Guide
| LIGHT BAR >> LIGHT BAR >> LED light bar(rectangular ,1 bar,20.3*5.00mm)
Specification

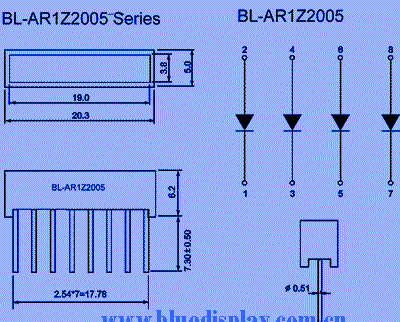

| Title: | LED light bar(rectangular ,1 bar,20.3*5.00mm) | |
| P/N: | BL-AR1Z2005 | |
| Size: | Reflector length: 20 Reflector width: 5 | |
| kind | LIGHT BAR -> LIGHT BAR | |
LED light bar(rectangular ,20.3*5.00mm) Lightbar LED Features: Display area shape: rectangular Display area number: 1 Reflector length: 20.30mm Reflector width: 5.0mm Uniform Light Emitting Area Low Current Operation Easily Mounted on PC. Board
Sepecification
| Part No CC. | Part No CA. | Color | Wave length | (V) typ | (V) Max | (mcd) | Pic |
| BL-AR1Z2005UB | ultra Blue | 470 | 3.8 | 4.5 | 22 | | |
| BL-AR1Z2005B | ultra Blue | 470 | 3.8 | 4.5 | 12 | |
